Understanding Electrical Grounding: How It Works

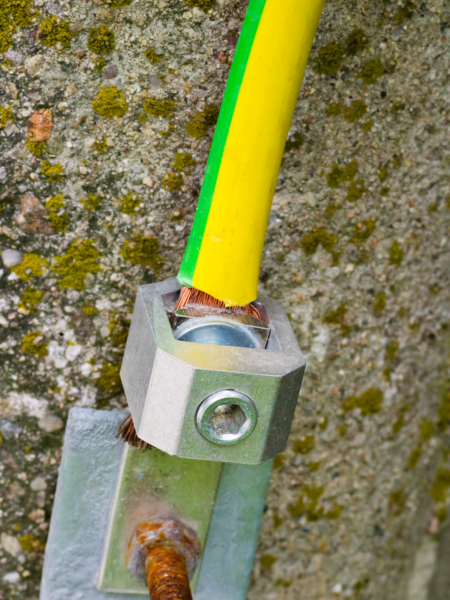

Electrical grounding

Do you know what electrical grounding is and why it’s important? Electrical grounding is a safety system that protects people and equipment from electrical shock. Let’s discuss what grounding is, how it works, and the benefits of using a properly grounded electrical system.

How Electrical Grounding Works



Grounding is the process of reducing the excess charge from an object by transferring electrons between it and another large object. When an electrical circuit is properly grounded, it provides a safe path for electricity to follow in the event of a short circuit or another emergency. Grounding protects people from electrical shock by redirecting electricity away from them and into the ground. Grounding also protects equipment from damage caused by electrical surges.

A well-grounded electrical system is a vital part of any home or business. If you’re not sure if your electrical system is properly grounded, contact a qualified electrician to check it for you. They can also help you make any necessary repairs or upgrades.



What Are The 3 Types Of Grounding Systems?



  • Ungrounded Systems
  • Resistance Grounded Systems
  • Solidly Grounded Systems

Each type of grounding system has its own advantages and disadvantages. Ungrounded systems are the simplest and most common type of electrical system. They’re also the least safe because they don’t provide any protection against electrical shocks. Resistance grounded systems are more complex, but they offer better protection against shock than ungrounded systems. Solidly grounded systems are the most complex and expensive, but they offer the best protection against shock.



Importance of Electrical Grounding



  • Electrical Overload Protection
  • Voltage levels are stabilized
  • Earth conducts with the least amount of resistance
  • Avoids Serious Injury and Damage

When you fail to ground the electrical system, you endanger your appliances and potentially your life. When high voltage is passed through a device, it is fried and irreparably ruined. An excess of power can even spark a fire, endangering your property and the lives of your loved ones.



Determining if Current is Grounded or Not

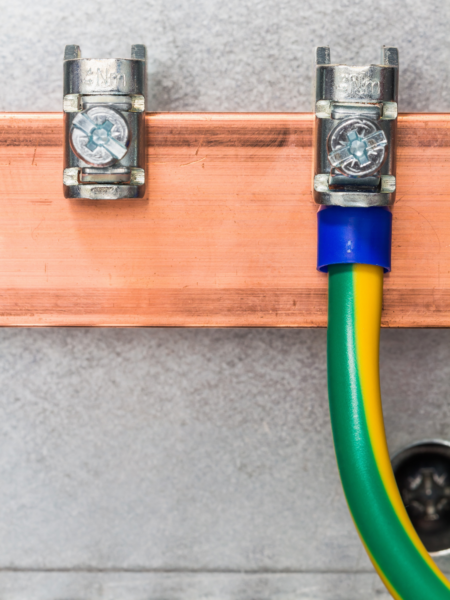

Electrical groundingYou can determine whether or not an electrical appliance is designed to be grounded. If the appliance has a three-wire cord and a three-pronged plug, the third wire and prong will serve as a ground link between the equipment’s metal frame and the wiring system’s grounding.

The ground connection protects people and equipment by providing a safe path for electricity to follow. If there’s a problem with the circuit, the electricity will flow through the ground wire instead of through you. Electrical grounding is an important safety measure that should not be ignored. If you’re not sure if your electrical system is properly grounded, contact a qualified electrician from J.D. Patrick Electric Inc. to check your property for you.
